The alkaline etching fluid recycling copper extraction system is used to treat and recycle the alkaline etching solution used in the copper etching process. It extracts and recycles the copper ions in the solution by recycling it, thereby reducing the need for waste liquid treatment, reducing costs, and improving resource utilization efficiency. The system usually includes liquid circulation, copper recovery and regeneration treatment, and the final liquid cleaning and filtration steps.
Alkaline Etching Fluid Recycling Copper Extraction System
The alkaline etching fluid recycling copper extraction system comprising a main control unit, a collection unit, a blending unit, an electrolysis unit and a recycling unit, wherein the collection unit comprises a collection cylinder and an old liquid storage tank; the collection cylinder is connected to the wastewater outlet of an etching machine; the blending unit comprises a circulating pump and a circulating bath; the electrolysis unit comprises plural electrolytic baths; the recycling unit comprises a regenerated liquid storage tank, a regenerated liquid regulating tank and a regenerated sub liquid storage tank; the inlet of the circulating bath is communicated with the outlet of the old liquid storage tank; the outlet of the circulating bath is communicated with the inlet of each electrolytic bath; the outlet of each electrolytic bath is communicated with the inlet of the regenerated liquid storage tank; the inlet of the regenerated liquid regulating tank is communicated with the outlet of the regenerated liquid storage tank; the outlet of the regenerated liquid regulating tank is communicated with the inlet of the regenerated sub liquid storage tank; the outlet of the regenerated sub liquid storage tank is communicated with the etching machine.
Alkaline Etching Fluid Recycling Copper Extraction System
Alkaline Etching Fluid Recycling Copper Extraction System Process

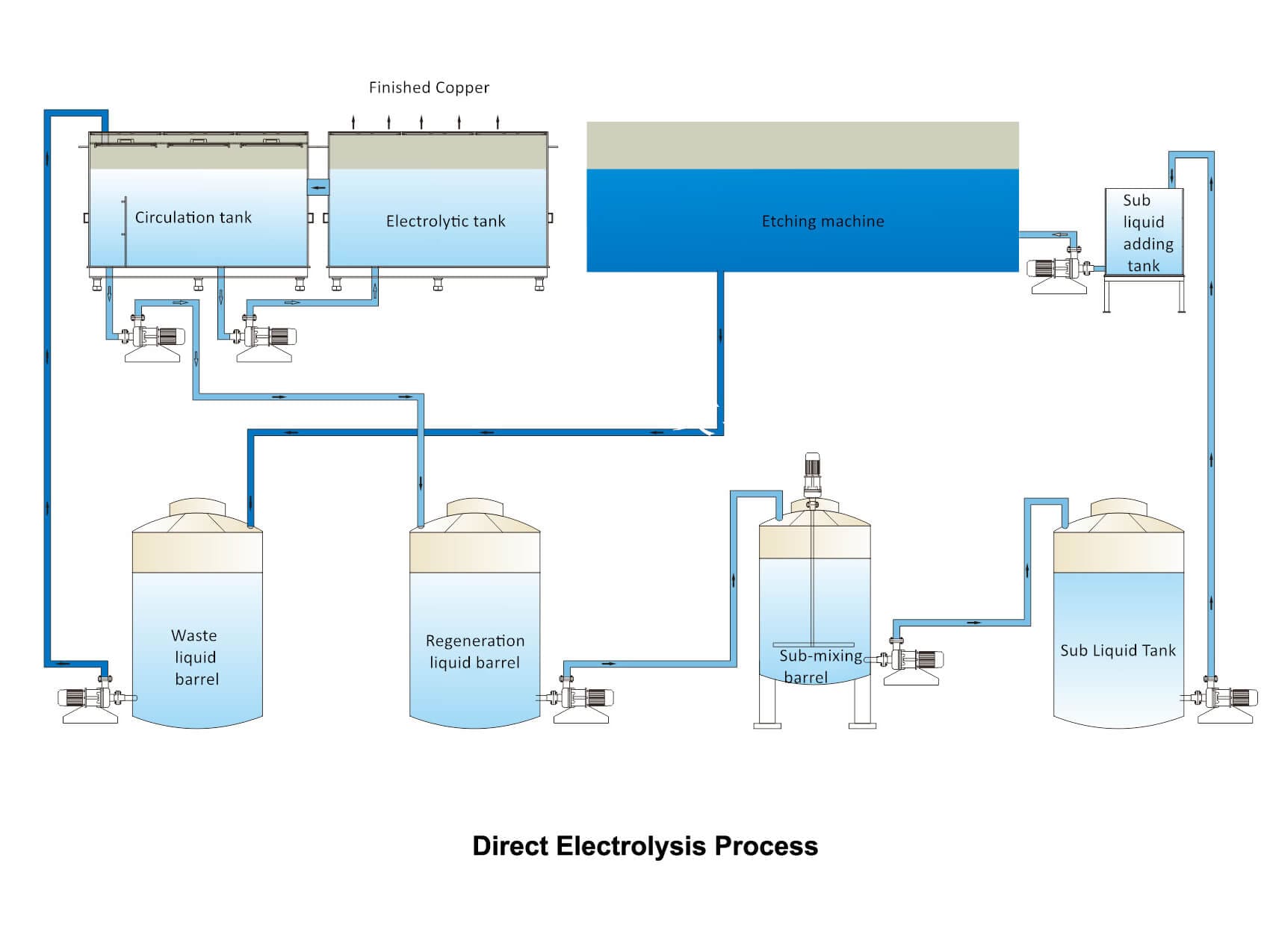

The process of recovering copper from alkaline etching fluid mainly includes the extraction electrolysis process and direct electrolysis process.

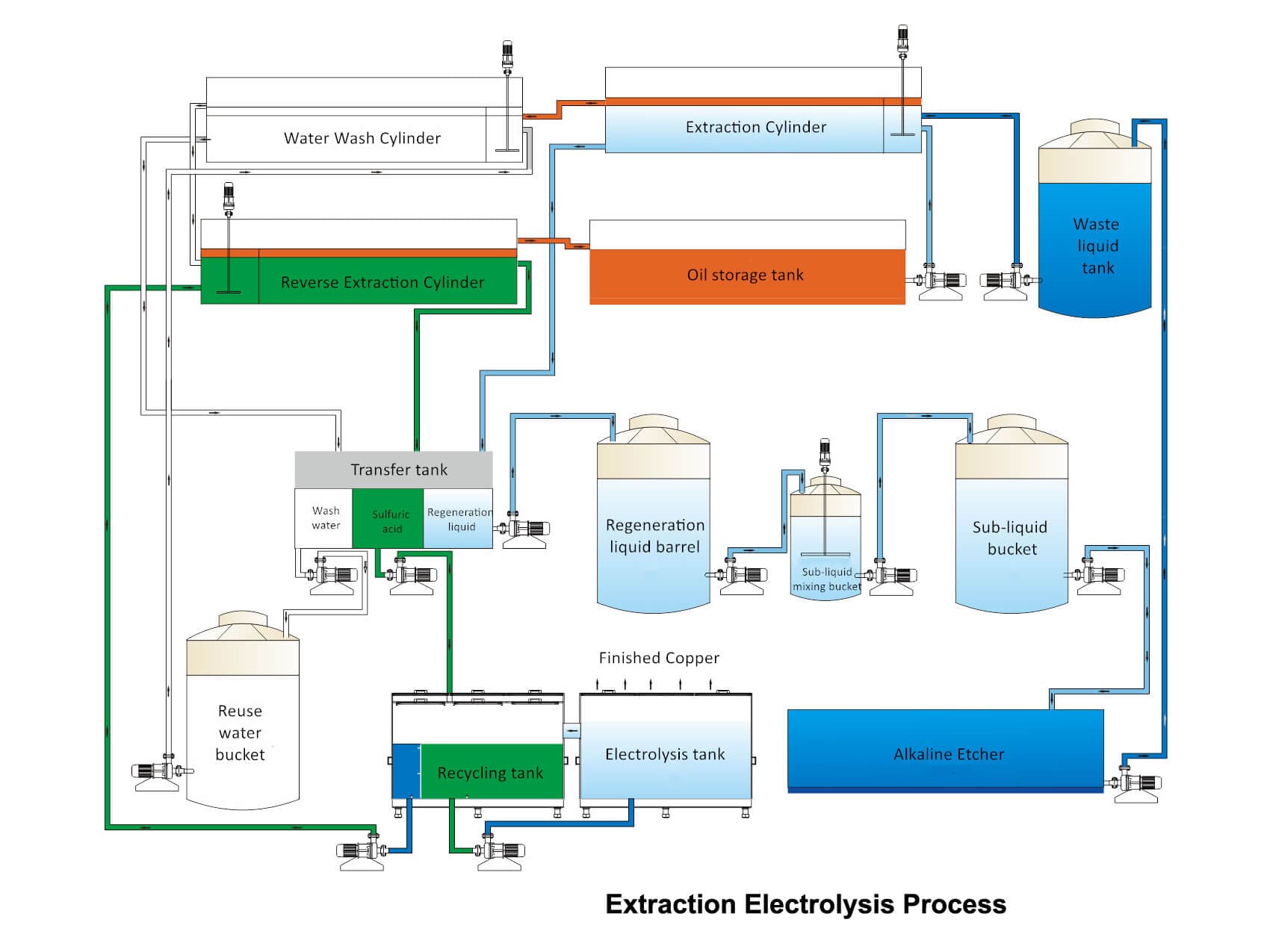

Extraction Electrolysis Process
The extraction electrolysis process in an alkaline etchant recycling copper extraction system is a critical step for extracting and recovering copper from the etchant. This process is highly efficient and environmentally friendly, and by recycling and recovering copper, it reduces the need for fresh resources and lowers the cost of waste solution disposal.
Working Principle and Process
The alkaline etching fluid recycling copper extraction system adopts the process of extraction separation – electrodeposition of copper. Extraction separation is to separate the copper ions in the waste etching solution so that the waste etching solution can be regenerated. After adjusting the parameters, the regenerated etching solution can be returned to the etching machine for recycling. The electrodeposition of copper is the electrodeposition of extracted copper ions into high-purity electrolytic copper.
Features
The waste etching solution is regenerated, and the regenerated etching solution can be recycled.
The copper ions in the waste etching solution and ammonia washing water were recovered to reduce to high-purity copper with a high copper recovery rate.
The equipment is simple to operate and maintain and does not affect production during installation and debugging. After installation and debugging, it can be put into use.
| Model | Waste Liquid Treatment Capacity (Tons/Month) | Electricity Load (kW) | Copper Production Capacity (Tons/Month) | Occupied Area(m2) |
| YZ-JXCQ-30 | 10-30 | 30 | 3 | 60 |
| YZ-JXCQ-50 | 50-100 | 60 | 5 | 100 |
| YZ-JXCQ-100 | 100 | 90 | 10 | 200 |
| Model | Waste Liquid Treatment Capacity (Tons/Month) | Electricity Load (kW) | Copper Production Capacity (Tons/Month) | Occupied Area(m2) |
| YZ-JXDJ-30 | 10-30 | 30 | 3 | 30 |
| YZ-JXDJ-50 | 50-100 | 60 | 5 | 40 |
| YZ-JXDJ-100 | 100 | 90 | 10 | 50 |
