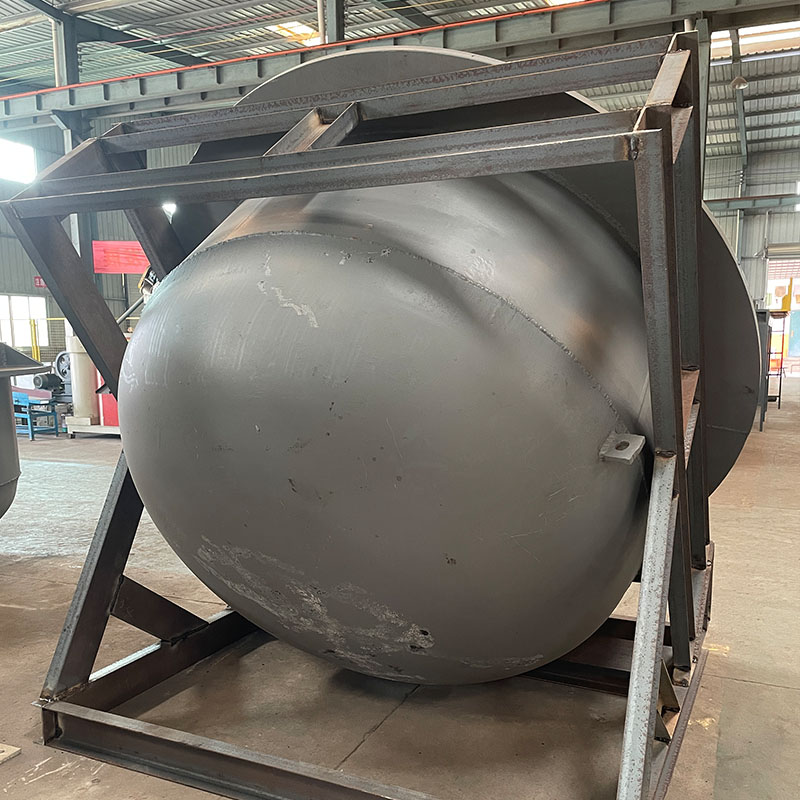

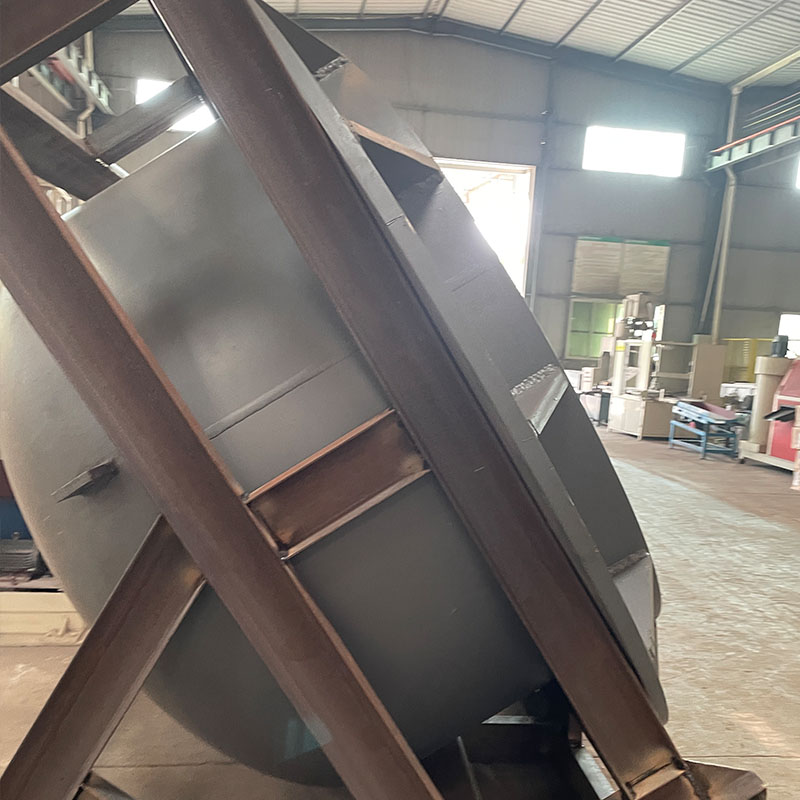

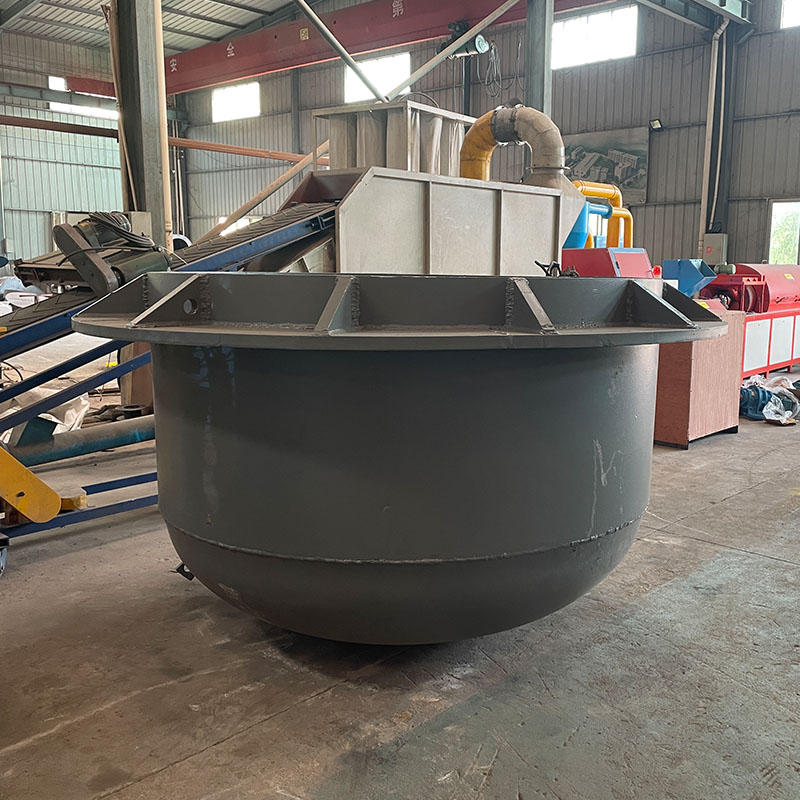

Lead melting pot is a device that provides molten lead for ball casting machine, granule casting machine and Barton lead powder machine during the production process of lead-acid batteries.
Lead melting pot is a device that provides molten lead for ball casting machine, granule casting machine and Barton lead powder machine during the production process of lead-acid batteries.
Material Grade: Alloy Steel, Carbon Steel,Heat-resistant Cast Iron
Quality Level: As per National Standard & International Standards.
Production Process: Sand Process,including machining process,sucn as drilling&tapping holes;
The Trends for Material Selection: Due to obvious advantages in terms of service life,maintenance and cost-efficiency,
cast steel has been becoming more significant in the melting pot construction over the last few years against both materials,
spheroidal cast-iron and lamellar graphite cast-iron. In comparison with other materials, cast steel offers excellent repair
possibilities as it is well-suited to welding.
Special Features:
1. We can make big size alloy steel castings with Sodium Silicate Sand Process.
2. We can supply finished alloy steel castings with heat-treatment and machining process.
3. We can produce alloy Steel castings as per ASTM A27, GB/T 20878,DIN 17440,DIN 17224, AISI,ASTM,JIS
SUH35,NF A35-572/584,BS970,BS1449,ISO 683/13.
4. The biggest steel castings we can achieve so far is 300 tons per piece.
Material Grade for Melting Kettles:
Chemical Composition | C (Max) | Si (Max) | Mn (Max) | S (Max) | P (Max) |
ZG200-400 | 0.2 | 0.5 | 0.8 | 0.04 | 0.04 |
ZG230-450 | 0.3 | 0.5 | 0.9 | 0.04 | 0.04 |
ZG270-500 | 0.4 | 0.5 | 0.9 | 0.04 | 0.04 |
ZG310-570 | 0.5 | 0.6 | 0.9 | 0.04 | 0.04 |
ZG340-640 | 0.6 | 0.6 | 0.9 | 0.04 | 0.04 |
