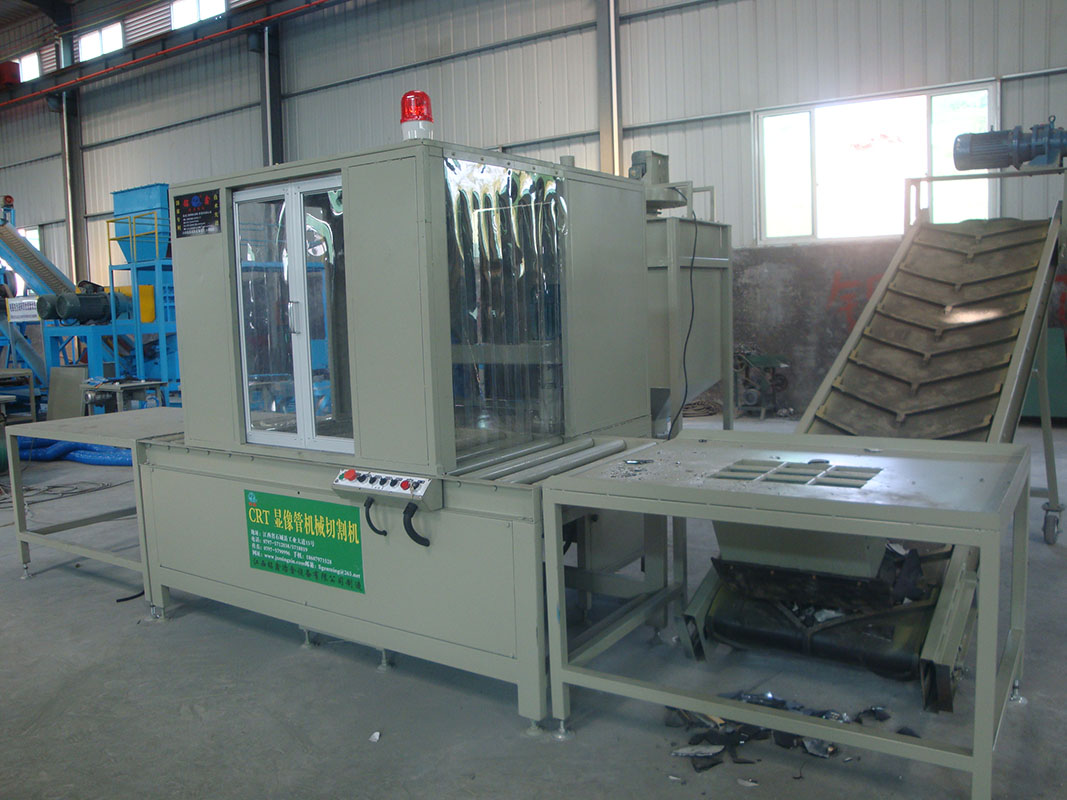

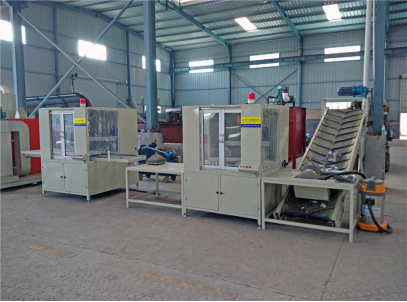

Auto ?CRT Cutter is a E-waste recycling device. It cuts CRT into funnel and panel.
Auto CRT Cutter is a E-waste recycling device. It cuts CRT into funnel and panel.
Features |
· Quickly cuts CRT into funnel and panel
· Physical cutting method ensures high cutting speed
· Easy to operate, reduce labor intensity
· Capacity up to 120 units per hour
· Environmental friendly
Composition |

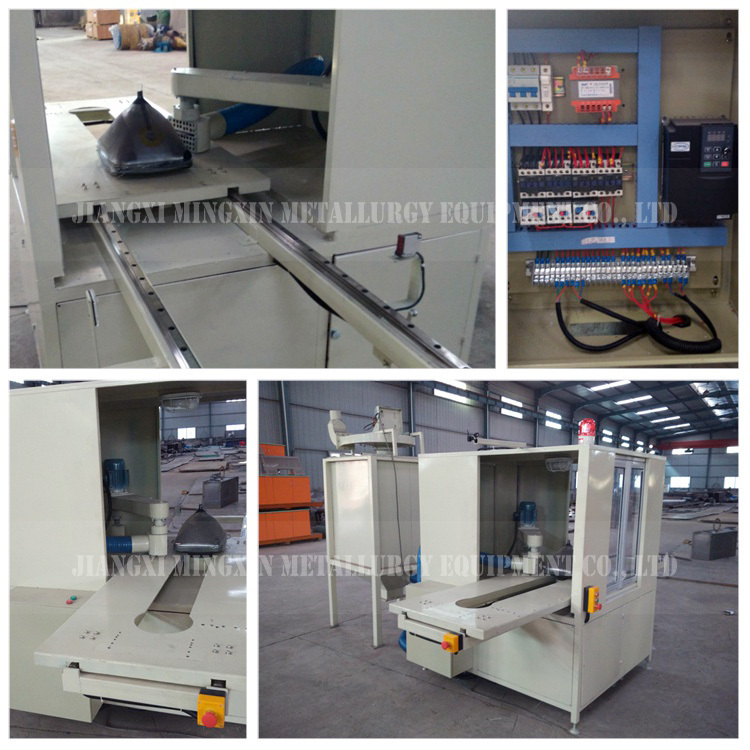

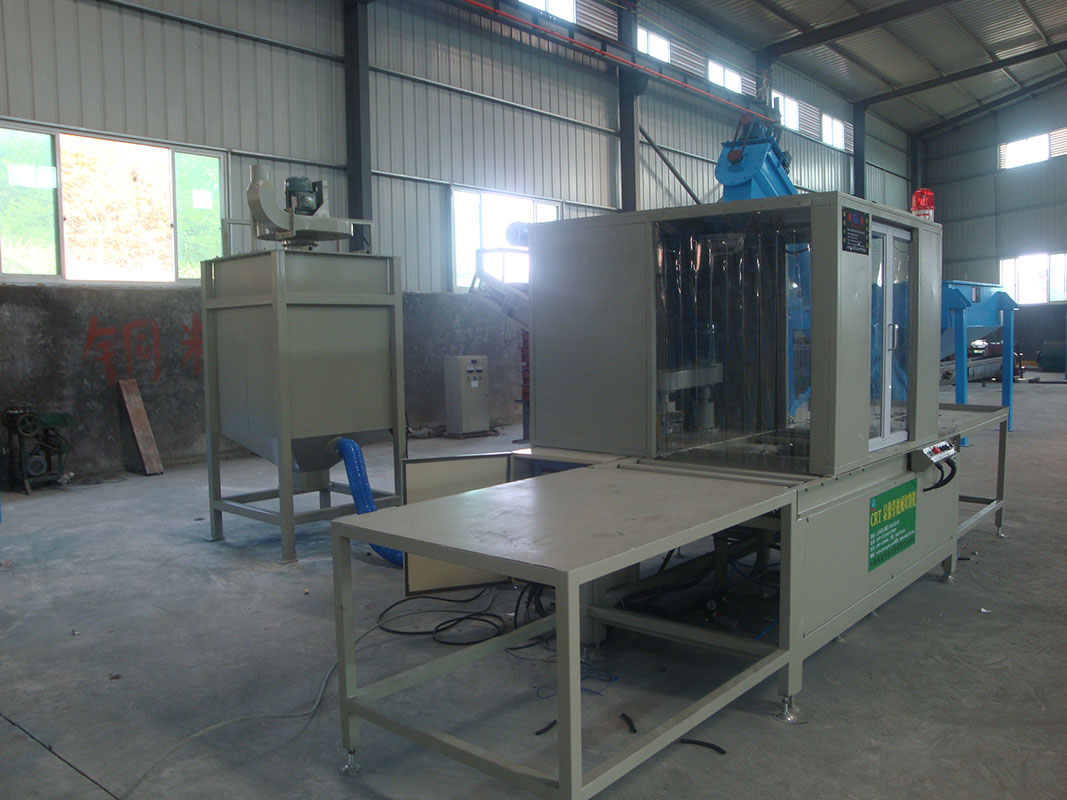

CRT Auto Cutter consists of cutting device, dust collection equipment, out-feed belt conveyor, explosion-proof belt cutting table, glass recycling workbench components.
Working Flow |

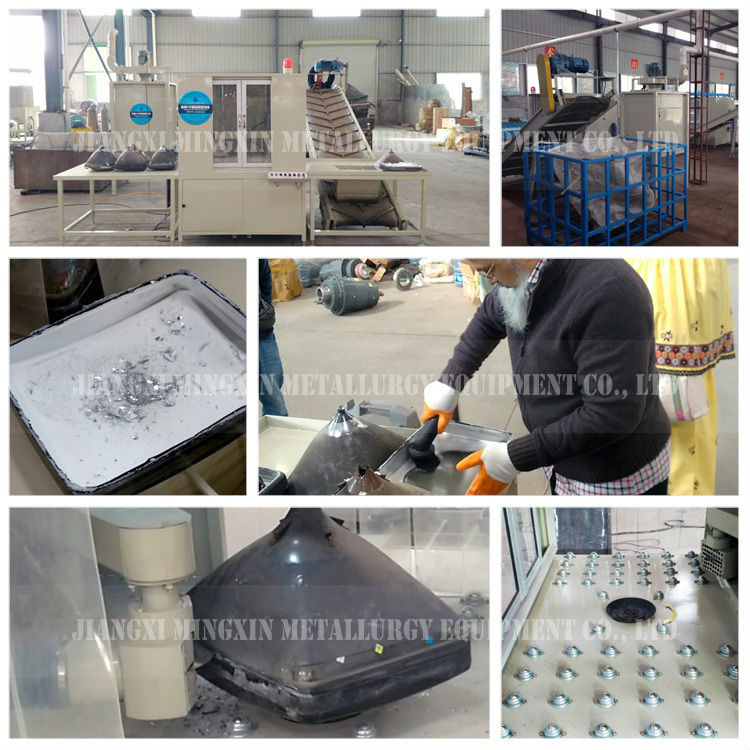

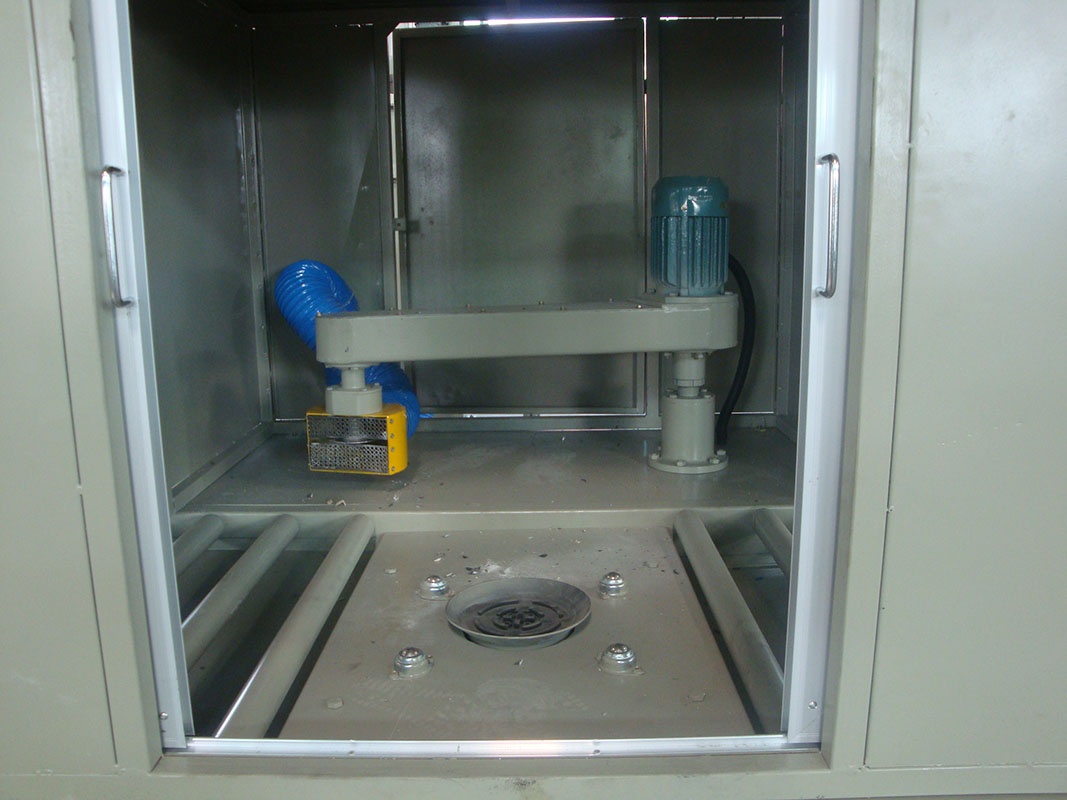

After removing steel belt/explosion-proof belt, operator places the CRT on the cutting table making the CRT center just facing the vacuum adsorption device, then start vacuum adsorption device to fasten the CRT, at the same time infrared is automatically open shooting to the CRT as a reference line for cutting, after that the operator will press height adjust button to slightly move up/down the CRT according to the infrared reference line. After all these done, start cutting process by press a button, a cutting wheel cuts the CRT as per the infrared line, 25 seconds later, funnel and panel are separated.
Specifications |
Size | 4800*3100*2350mm | Air Pressure | 0.6~0.8MPa |
Capacity | 100~120 units/h | Power | 380V/8.05kw |
Operators | 3 | Applicable Items | TV and computer: 12~33 inch CRT |
Working Voltage | AC380V+/-10% 50HZ | Air compressor Model | W-0.8/12.5-7.5KW-180L |
Phosphor Powder collector Model | 60L-1.8KW->17KPa |
|
