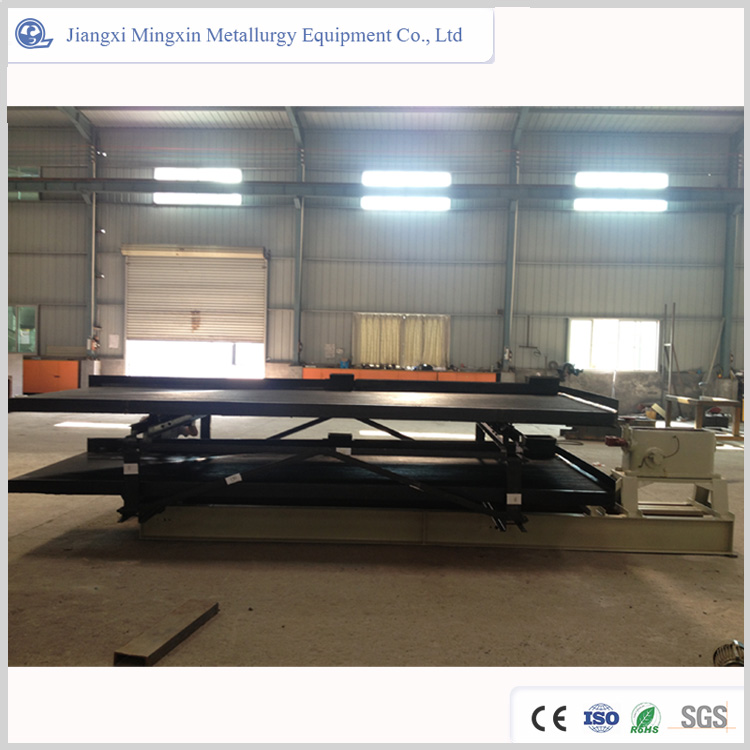

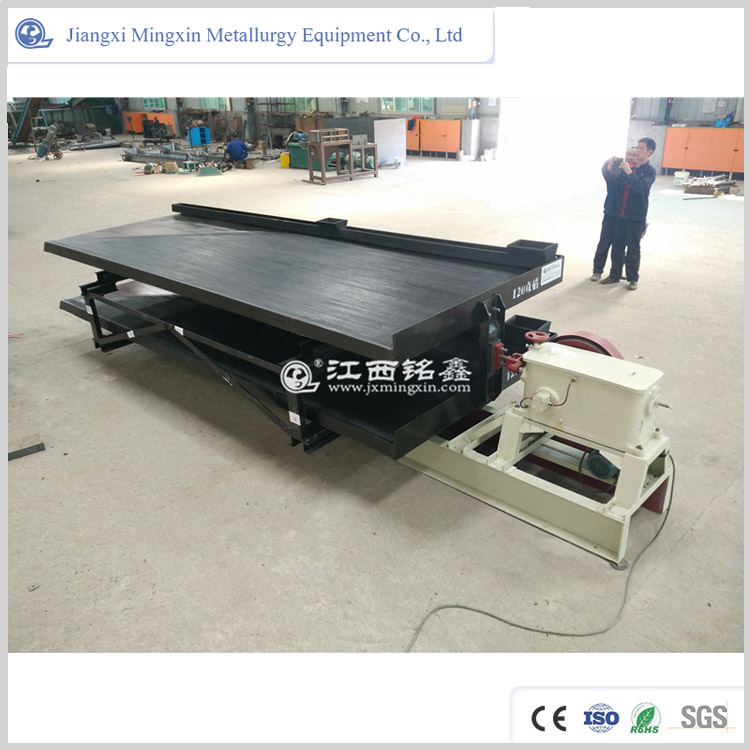

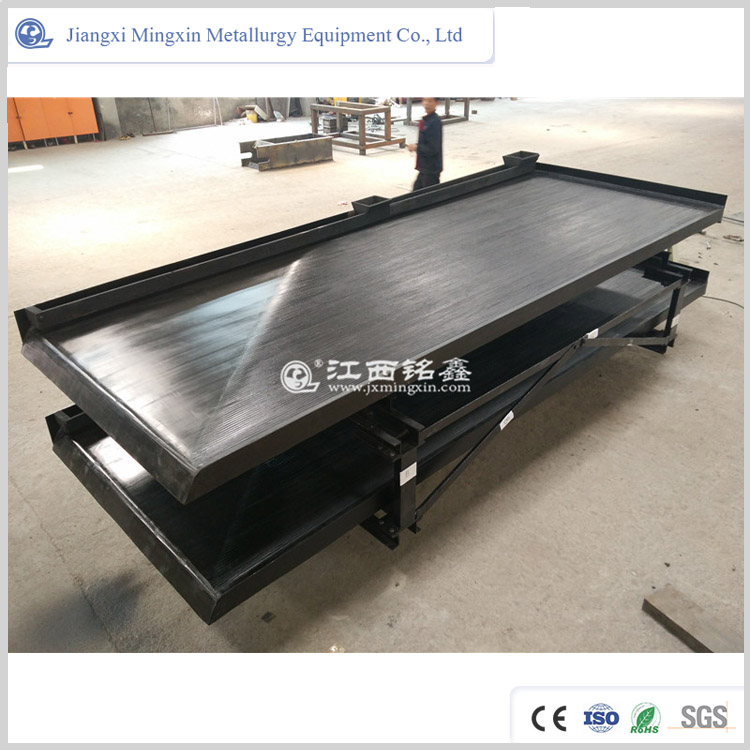

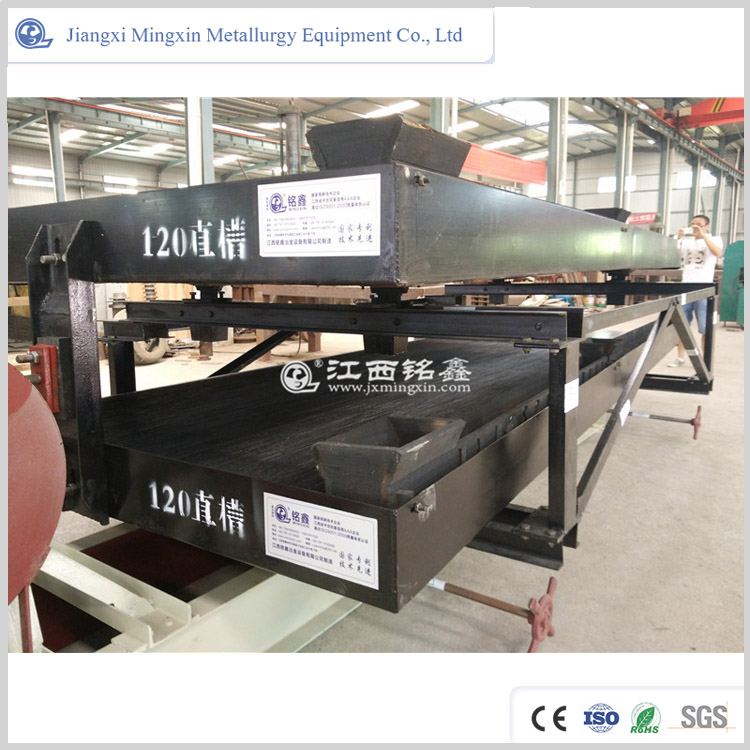

The double deck gold shaker table is an innovative product of the traditional single deck shaker. It covers small area, large processing capacity, energy-saving, relatively low equipment cost, high ri...
Overview
The double deck gold shaker table is an innovative product of the traditional single deck shaker. It covers small area, large processing capacity, energy-saving, relatively low equipment cost, high rich ore ratio, high efficiency, easy to adjust the stroke. The balance of the bed surface can be maintained while changing the lateral slope and stroke. The spring is placed in the table body, the final concentrate and final tailings can be obtained at one time.
| Deck type | Unit | Course sand | Fine sand | Slime Deck | Three different kinds of decks are available | |||
| Beneficiation Area | m2 | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | |
| Deck Size | Length | mm | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 |
| transmission end width | mm | 1855 | 1855 | 1855 | 1320 | 1050 | 500 | |
| Concentrate end width | mm | 1546 | 1546 | 1546 | 1100 | 850 | 430 | |
| Maximum Feeding Size | mm | 2 | 0.5 | 0.15 | 0.1-2 | 0.074-2 | 0.074-2 | |
| Process Capacity | t/h | 1.5-2 | 0.8-1.5 | 0.5-0.8 | 0.4-1.5 | 0.3-0.8 | 0.05-0.2 | |
| Feeding Density | % | 25-30 | 20-25 | 15-25 | 10-30 | |||
| Stroke | mm | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 | |
| Frequency | f | 45-48 | 18-53 | 50-57 | 210-320 | 250-450 | 280-460 | |
| Water added | t/d | 80-150 | 30-60 | 10-17 | 0.3-1.5t/h | 0.2-1t/h | 0.1-0.5t/h | |
| Transverse slope of Deck | ° | 2° 30-4° 30 | 1° 30-3° 30 | 1° -2° | 0 -10° | 0 -8° | 0 -10° | |
| Longitudinal slope of Deck | ° | 1.4 | 1.4 | 0.92 | —— | —— | —— | |
| Cross-section Shape of Deck | rectangular | saw tooth | triangle | Avaliable rectangular, saw tooth, triangle | ||||
| Motor Power | KW | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
