Screening Size: 0.2281-2.7922 m2 Motor Power: 0.55kW-3.7kW Screen Layer: 1-5 available Screen Mesh: 2-500 mesh Applications: Food, ceramic, chemical, pharmaceutical industry, metallurgy, pollution abatement, etc.,
Product Overview

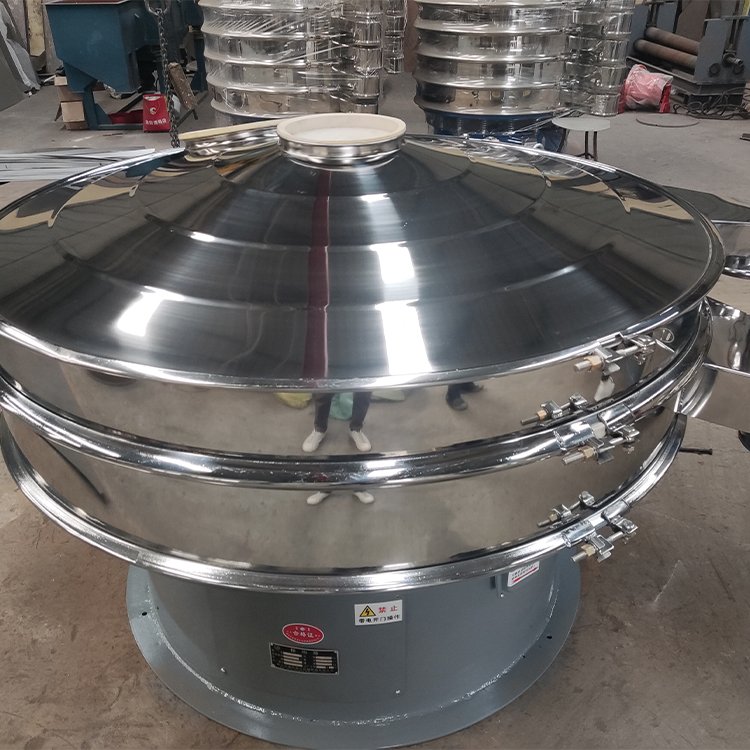

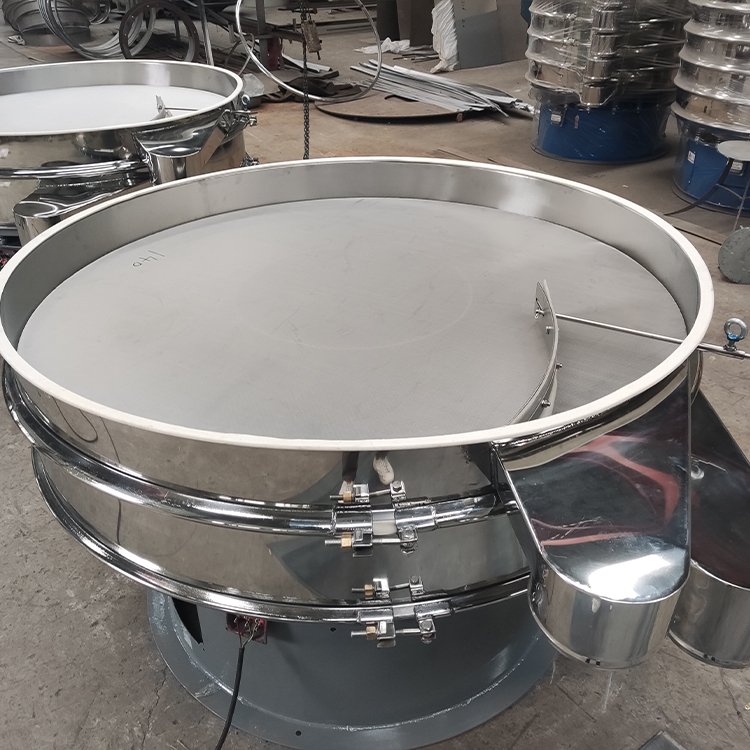

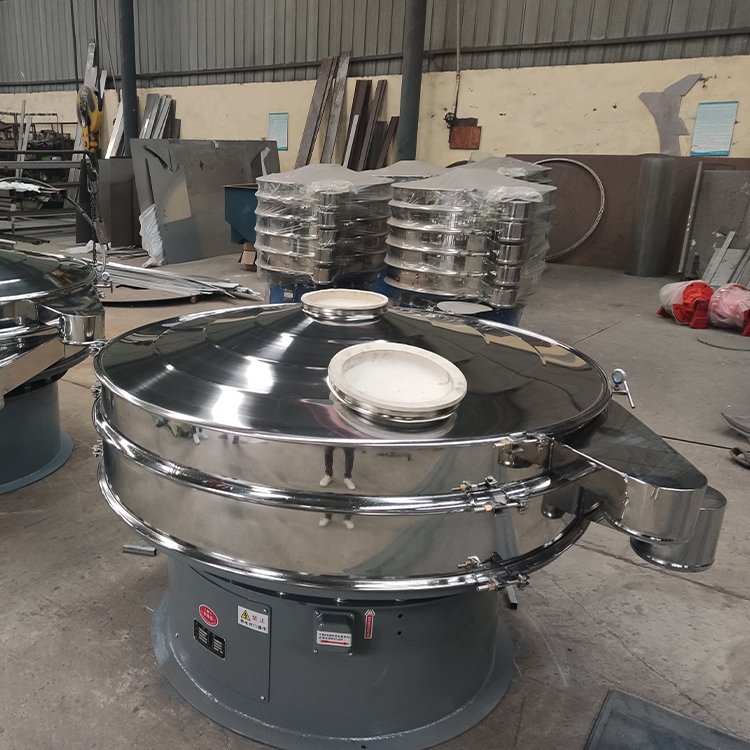

The rotary vibrating screen is a vibrating screening equipment with high screening fineness and large processing capacity. It can achieve satisfactory screening results for particles, fine powders, and liquids.
The rotary vibration screen vibrates in a circular motion, with adjustable amplitude, long material screening flow line, multi-layer screening, clear screening of each specification, and high screening efficiency. It is suitable for screening in the mining and sand and gravel industries.
Application Range
Structure&Working Principle

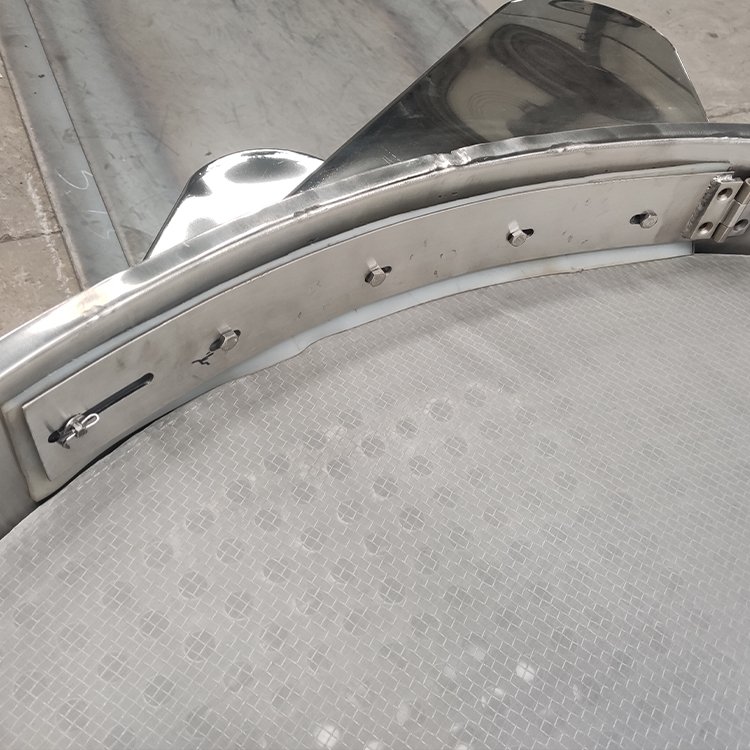

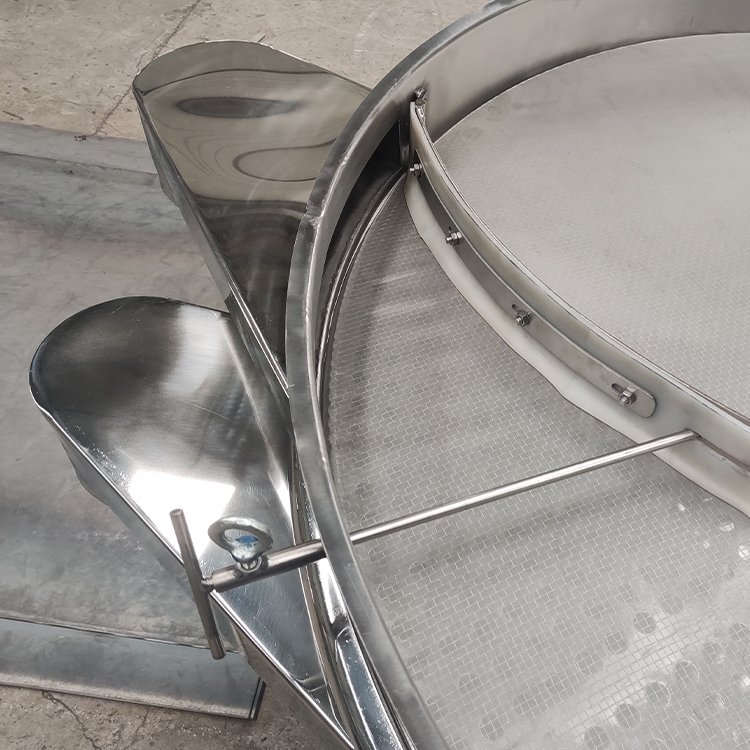

Rotary vibrating screen mainly includes mesh cleaning systems, damping spring, beam ring, vibration motor, seal, etc.
The rotary vibrating screen uses a vertical vibration motor as the exciter. The upper and lower ends of the vibration motor are equipped with eccentric weights, which convert the rotational motion of the vibration motor into horizontal, vertical, and tilted three-dimensional motion and then transfer this motion to the Screen surface. Adjusting the phase angles of the upper and lower ends can change the movement trajectory of the material on the screen surface.
Model Screen Size(m2) Layer Screen Diameter(mm) Screen Mesh (mesh) Motor Power(kw) Vibration Motor Ordinary Motor 600 0.2281 1-5 1-25 ?540 0.55 0.75 800 0.4183 1-5 1-25 ?730 0.75 1.1 1000 0.6359 1-5 1-25 ?900 1.1 1.5 1200 0.9499 1-5 1-25 ?1100 1.5 1.5 1500 1.5386 1-5 5-40 ?1400 2.2 2.2 1800 2.2687 1-3 5-40 ?1700 3.0 2.2 2000 2.7922 1-3 1-40 ?1886 3.7 3.0
